PRIME Regenerator RPT-S500

PRIME Regenerator RPT-S500
Send Inquiry
Product Code : RPT-S500
Brand Name : PRIME
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 12000~25000 USD ($)/Unit
  • Price Range
  • 12000.00 - 25000.00 USD ($)/Unit
Product Specifications
  • Voltage
  • 2~96V Volt (v)
  • Dimension(L*W*H)
  • 53*68*110 Centimeter (cm)
  • Weight
  • 67.5 Kilograms (kg)
  • Warranty
  • 2 Years
Product Description

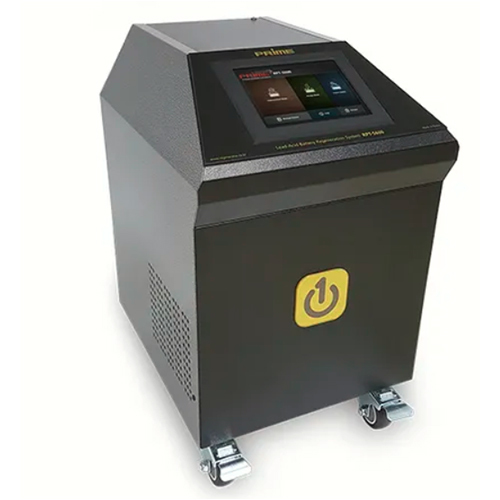

PRIME RPT-S500 Universal Battery Regenerator (Standard Type, 3-in-1)



2V~96V all-in-one voltage, Input AC Power Consumption: 4.5KW (max.), Max. 60A output current, 8 inch Touch Screen Monitor. This system easily de-sulfates all kinds of lead-acid batteries up to 1,000Ah (Optimized up to 1,000Ah, and more capacities are regenerated by repeated processes) such as Forklift, Telecom UPS, Golf Carts and automotive /solar/UPS batteries with sizes of 2-volt, 6-volt, 8-volt, 12-volt, 24-volt, 36-volt, 48-volt, 60-volt, 72-volt, 80-volt, 84-volt or 96-volt batteries. You can also connect batteries in series, such as max. 8 batteries of 12 volts each, which equals a 96-volt bank of batteries or max. 24 batteries of 2 volts, which equals a 48-volt bank of UPS and Forklift batteries as well. And more .... (Maximum Input AC Current : 20A, 210~240VAC, Single Phase - Direct cable connection to the main breaker)

RPT-S500 (3-in-1) : Packaging Size : 1100mm(H) x 530mm(W) x 680mm(D), 67.5kg DHL (80kgs)

1. Regenerator (2V~96V all adjustable voltages-in-one, 40Ah ~ 1,000Ah capacity) at 'REGENERATION' mode
2. Charger (2V~96V all adjustable voltages-in-one, Up to 1,000Ah capacity) at 'CHARGE' mode
3. Power Supply (2V~96V free setting mode of Voltage, Current & Time for special & sleeping batteries)

* Mainly used for 2V Forklift, TELECOM UPS & other Traction bank/rack connected batteries
* Maximum Limited Output Current : 2V~48V = 60A and 50V~96V = 30A
* A Discharger (RPT-D10K) is optional.



* The regeneration time with any PRIME regenerator takes 15 hours including a full charge. But any battery was already nearly full charged, the operation of PRIME will be automatically finished earlier than setting time.

* PRIME regeneration methods are not adding any sulfuric-acid and chemical additive in any cell at all.



* Special Advantages All New Innovation!
1. Universal compatibility - All kinds of Lead-acid batteries from 2V to 96V and 40Ah~1000Ah (RPT-S500/S600)
2. A full automatic operation by very simple set up.
3. Excellent system durability and stability - Lowest defects by good quality parts and stable system
4. Lowest power consumption (ex. 48V 500Ah = About 40KW power consumption only for 15 hours totally)
5. Adoption of various electrical safety protection circuit design
6. No battery explosion with the advanced circuit system and micro-bubble desulfation process.
7. Sustaining lower temperature in the battery by automatic output voltage & current control
8. Satisfactory customer service and quick after service
9. Portable light weights and easy to carry
10. Using anywhere with AC220V Single phase (RPT-S500/S600)

* Exclusive Advantages All New Innovation!
1. Exclusive technology - The most advanced and optimized real high-frequency pulse regeneration technology.
2. Exclusive smart control system and high-frequency pulse inclusive current charging algorithm in a special Micom.
3. Exclusive regeneration software algorithm - Maximized restoration & desulfation effect and Minimal cell damage.
4. Exclusive bubble figure - The highest battery restoration performance with micro bubble de-sulfation process.
5. Exclusive multi-functional machine 30% price only comparing purchasing all machines individually.
6. Exclusive circuit protection system and the most advanced circuit system design.
7. Exclusive regeneration performance - What could be better than PRIME? We are confident that there's nothing better!
8. Exclusive Power Supply Mode for manual setting regeneration and charge  Variable regeneration/charge methods.
9. Exclusive easy control and the easiest user interface by 8 inch TFT Touch Screen set up
10. Exclusive full automatic regeneration process and fastest desulfation & charge time (15 hours).
11. Exclusive Graph output and printing by USB connection with PC (Microscopic analysis of regeneration or discharge test processes  supplying a shielded A-A USB cable)
12. Exclusive elegant exterior housing design with achromatic colors

* PRIME does not give the cell damage with the higher voltage due to the integral equation by positive and negative high-frequency pulse waves (RMS - World exclusive technology).
Trade Information
  • FOB Port
  • Incheon Airport, Korea
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 100 Unit Per Month
  • Delivery Time
  • 5 Days
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • 1100mm(H) x 530mm(W) x 680mm(D), 67.5kg / Unit - Carton Box Packing
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Certifications
  • CE, FCC, ISO
